Chimney Repointing, Crown Repair & Cap Installation
This chimney restoration project in Watertown, MA addressed failing mortar joints, crown deterioration, and inadequate weather protection at the top of the chimney. We repointed the masonry to restore integrity to the failing joints, removed and reinstalled the chimney crown, and installed a new chimney cap to direct rainwater away from the restored masonry — protecting the repair work against New England weather for years to come.
The Challenge
The chimney had visible deterioration and required proper repointing to address the failing mortar joints and help protect the masonry from further water damage.
When mortar joints begin to break down, rainwater can enter the chimney assembly and accelerate long-term deterioration through repeated moisture exposure and freeze-thaw cycles. In New England, where winters are harsh and temperature swings are frequent, this cycle can cause significant structural damage if left unaddressed.
In projects like this, it is not enough to only repoint the chimney. The top of the chimney also needs proper protection so water does not continue washing directly onto vulnerable masonry surfaces. That is why we advise clients that, when a chimney is being repointed, a chimney cap is one of the smartest upgrades to include. A properly installed cap helps rainwater drip away from the chimney instead of running directly onto the restored masonry.
The chimney crown also needed to be addressed as part of the restoration so the full top section of the chimney could function correctly as a system.

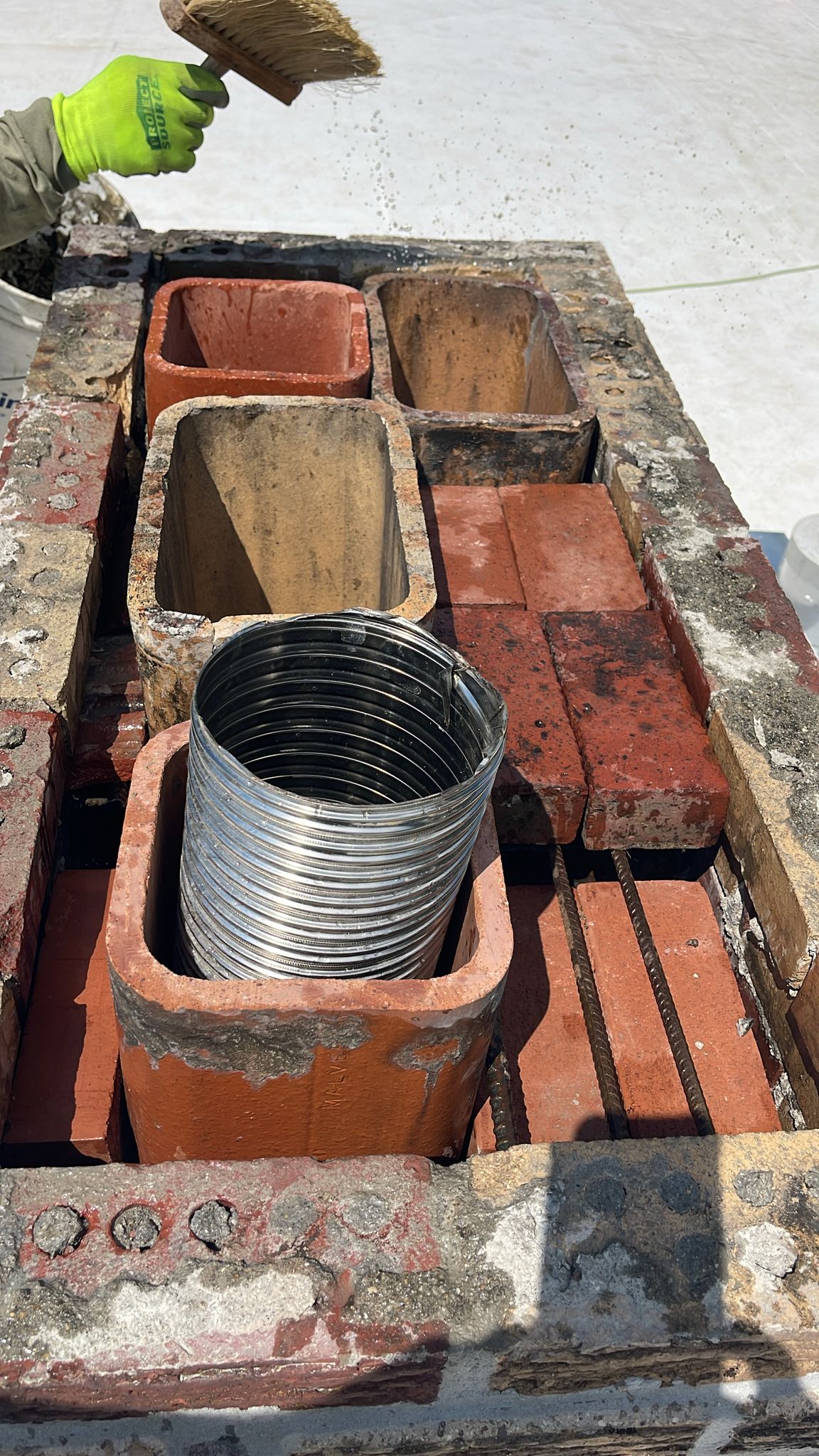

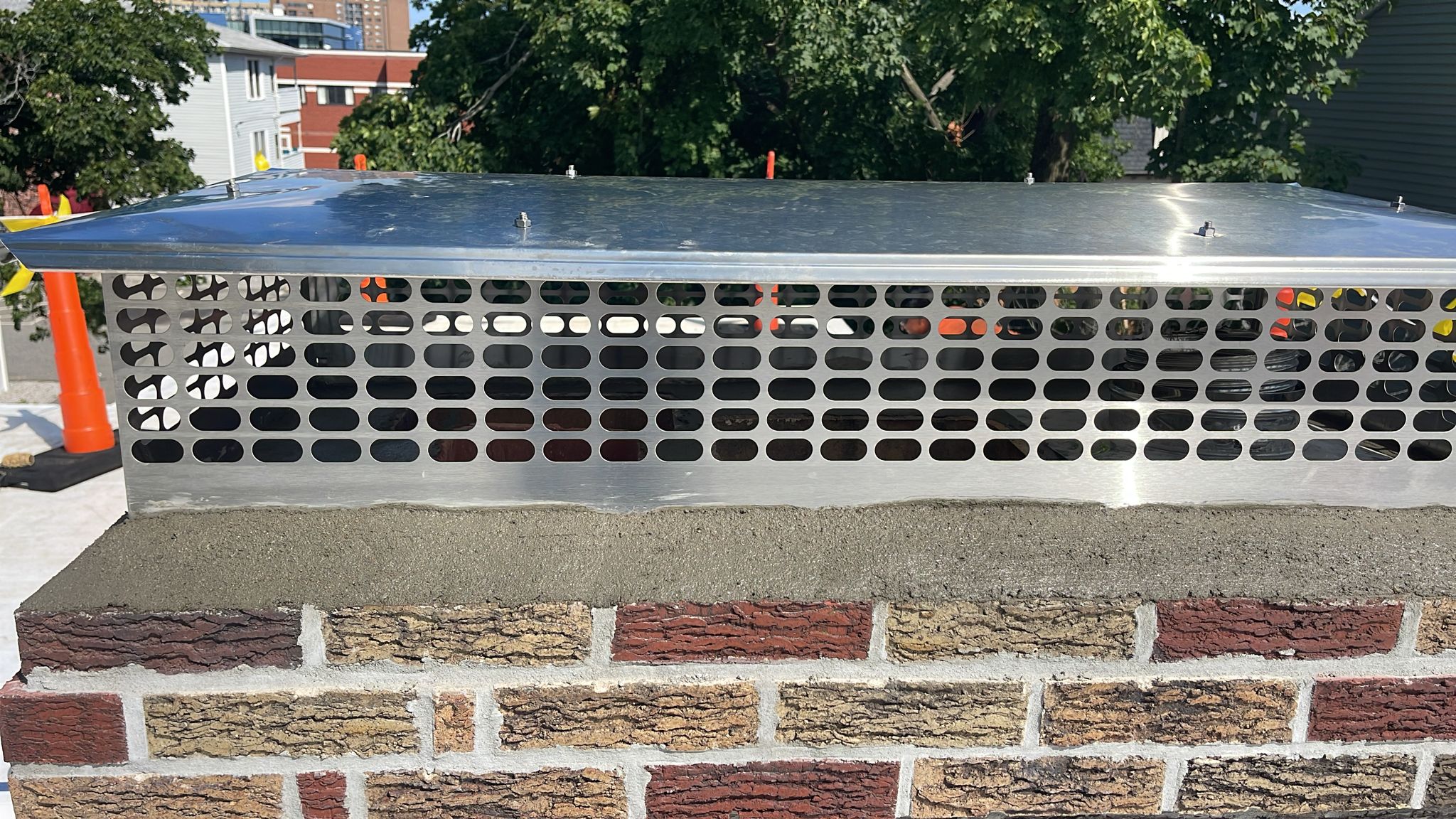

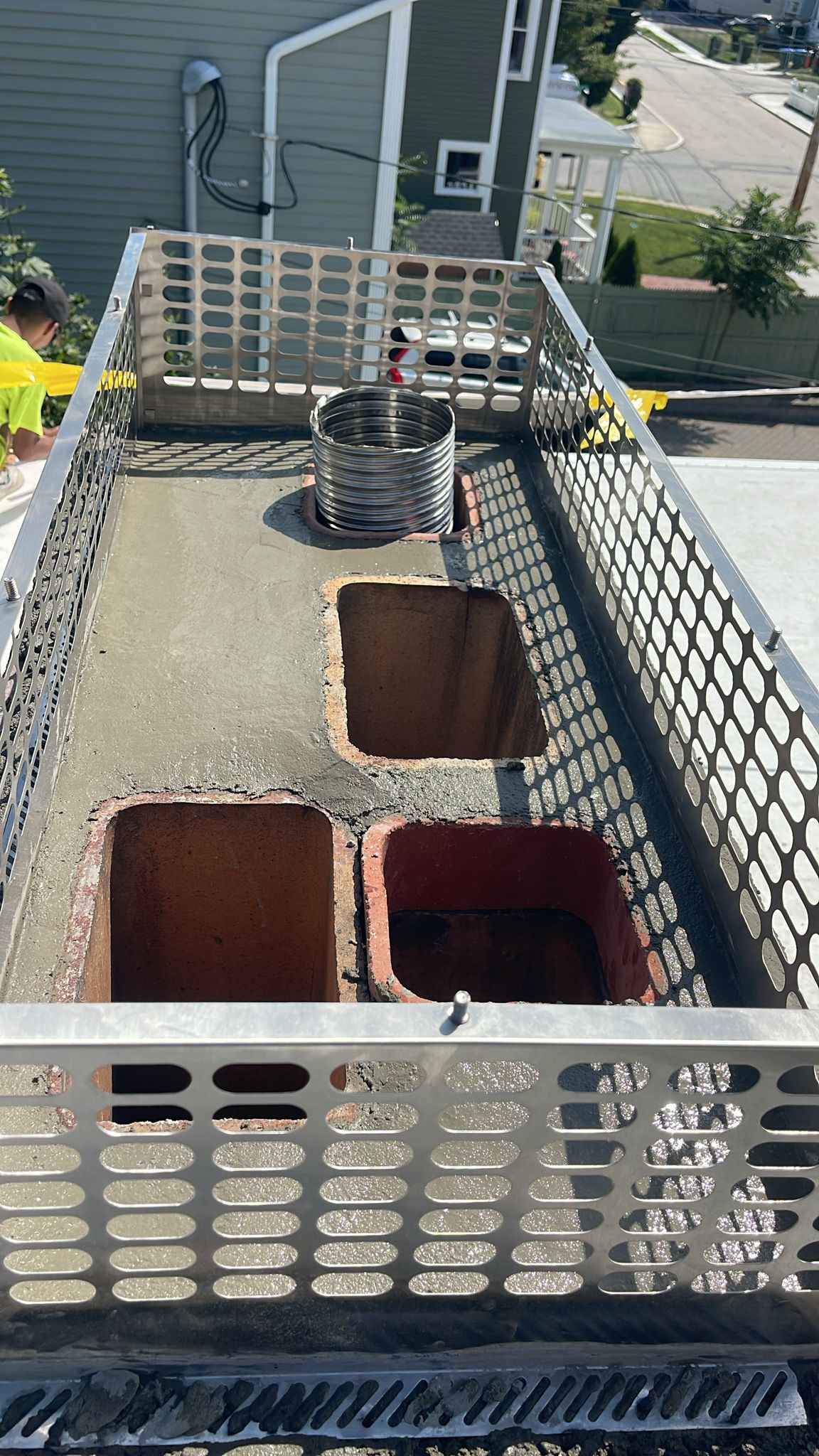

Before & After Transformation
Transformation: This project showcases the dramatic difference our expert team can achieve. From the initial condition to the final result, see how quality craftsmanship transforms spaces.
Scope of Work
- Inspection of the deteriorated chimney condition to assess the full scope of work
- Chimney repointing to restore failing mortar joints and improve masonry integrity
- Removal of the existing chimney crown
- Reinstallation of the chimney crown as part of the full top-of-chimney restoration
- Installation of a new chimney cap to direct rainwater away from the masonry
- Final detailing and cleanup
Materials Used
- Mortar mix matched to the existing masonry for chimney repointing
- Crown repair and reinstallation materials
- New chimney cap sized and fitted to the chimney flue
Challenges Solved
- Restored failing mortar joints through proper chimney repointing
- Removed and reinstalled the chimney crown to address deterioration at the top of the chimney
- Installed a chimney cap to protect the restored masonry by directing rainwater away from the chimney surfaces
- Addressed the full chimney system as a whole rather than performing only a partial repair
- Improved long-term resistance to freeze-thaw moisture cycles common in New England winters
The Results
The completed project restored the chimney masonry, improved protection at the top of the chimney, and gave the homeowner a more reliable system against future water damage.
By repointing the chimney, addressing the crown, and installing a new chimney cap, this project helped reduce the chimney's exposure to direct rainwater and supported the long-term durability of the masonry.
The result is a cleaner, stronger, and better protected chimney system that is more prepared to withstand ongoing weather exposure in Watertown and the surrounding area.
Project Gallery
Project Timeline
Chimney Restoration
This project was completed through a coordinated chimney restoration process that included masonry repointing, chimney crown work, and installation of a new chimney cap for improved long-term protection.
Investment Insights
Frequently Asked Questions
What is chimney repointing and why is it needed?
Chimney repointing is the process of removing deteriorated mortar from the joints between masonry units and replacing it with fresh mortar. Over time, mortar breaks down from moisture exposure and temperature cycling. When the joints fail, water can penetrate the chimney structure and cause progressive damage from the inside out. Repointing restores the joint integrity and helps the masonry resist further water intrusion.
Why was the chimney crown removed and reinstalled?
The chimney crown sits at the very top of the chimney and forms the first line of defense against water entry. When a crown is deteriorated or improperly supported, it needs to be addressed as part of any full chimney restoration. We removed the existing crown, made the necessary corrections, and reinstalled it so the top of the chimney could function correctly as part of the complete system.
What does a chimney cap do?
A chimney cap is installed over the flue opening at the top of the chimney. It is designed to allow gases to escape while redirecting rainwater so it drips away from the chimney rather than falling directly onto the masonry surfaces. This is especially important after repointing work — a cap helps protect the restored mortar joints from being immediately re-exposed to direct water infiltration.
Is a chimney cap really necessary if the chimney has already been repointed?
Yes. Repointing corrects the damage that has already occurred, but without a cap, water continues to wash directly onto the masonry from above. Adding a chimney cap during the restoration process is one of the most cost-effective ways to extend the life of the repair and reduce the frequency of future masonry maintenance.
How does New England weather affect chimney masonry?
Freeze-thaw cycles are particularly damaging to chimney masonry. When water enters failing mortar joints and then freezes, it expands and widens the cracks further. Repeated cycles over many winters can significantly accelerate deterioration. Repointing and installing a chimney cap addresses both the existing damage and helps limit future water exposure, which is especially important in New England climates.
How do I know if my chimney needs repointing?
Common signs include mortar joints that appear recessed, crumbled, or missing; visible cracks in the masonry; white staining on the chimney exterior (efflorescence); or water entering around the chimney inside the house. A professional inspection will confirm whether repointing is needed and whether any other components — crown, cap, flashing — should be addressed at the same time.
Do you handle chimney repointing and cap installation in other Massachusetts towns?
Yes. WaterTite Co. serves Watertown and the broader Greater Boston area. Contact us for an evaluation of your chimney and a detailed quote specific to your project.
